Vertical Reveal – Transition

All measurements are nominal
ITEM ID | A | B | C |
---|---|---|---|
RVT51634 | 3/8” | 3/4” | 1/2” |
All parts are 10’ Length unless otherwise indicated

MATERIALS: 6063-T5 .050″ ± .005, extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
FINISHES: Unless specified all XtremeTrim® items are provided in primed finish. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™. Clear Anodized is stocked and custom anodized is available (minimums apply).
NOTE: Do not install XtremeTrim® Transition Vertical Reveal on horizontal applications where the exterior flange can catch/hold water.
Vertical Reveal – Transition

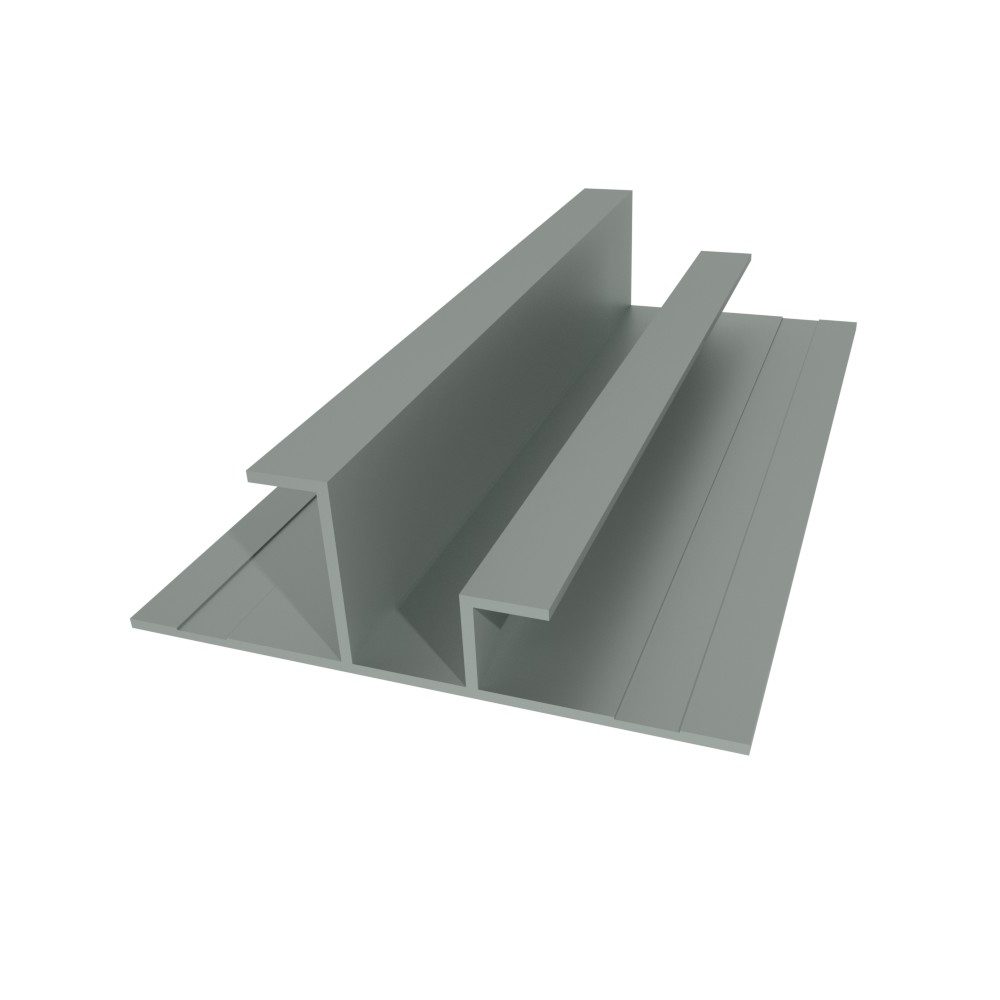

Designed to create a uniform, aesthetically consistent vertical reveal at transitions between panel and lap siding.
MATERIALS: 6063-T5 .050″ ± .005, extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
FINISHES: Unless specified all XtremeTrim® items are provided in primed finish. Also available in popular siding/soffit colors in standard face only color match or full coverage CoastalColorCoating™. Clear Anodized is stocked and custom anodized is available (minimums apply).
NOTE: Do not install XtremeTrim® Transition Vertical Reveal on horizontal applications where the exterior flange can catch/hold water.

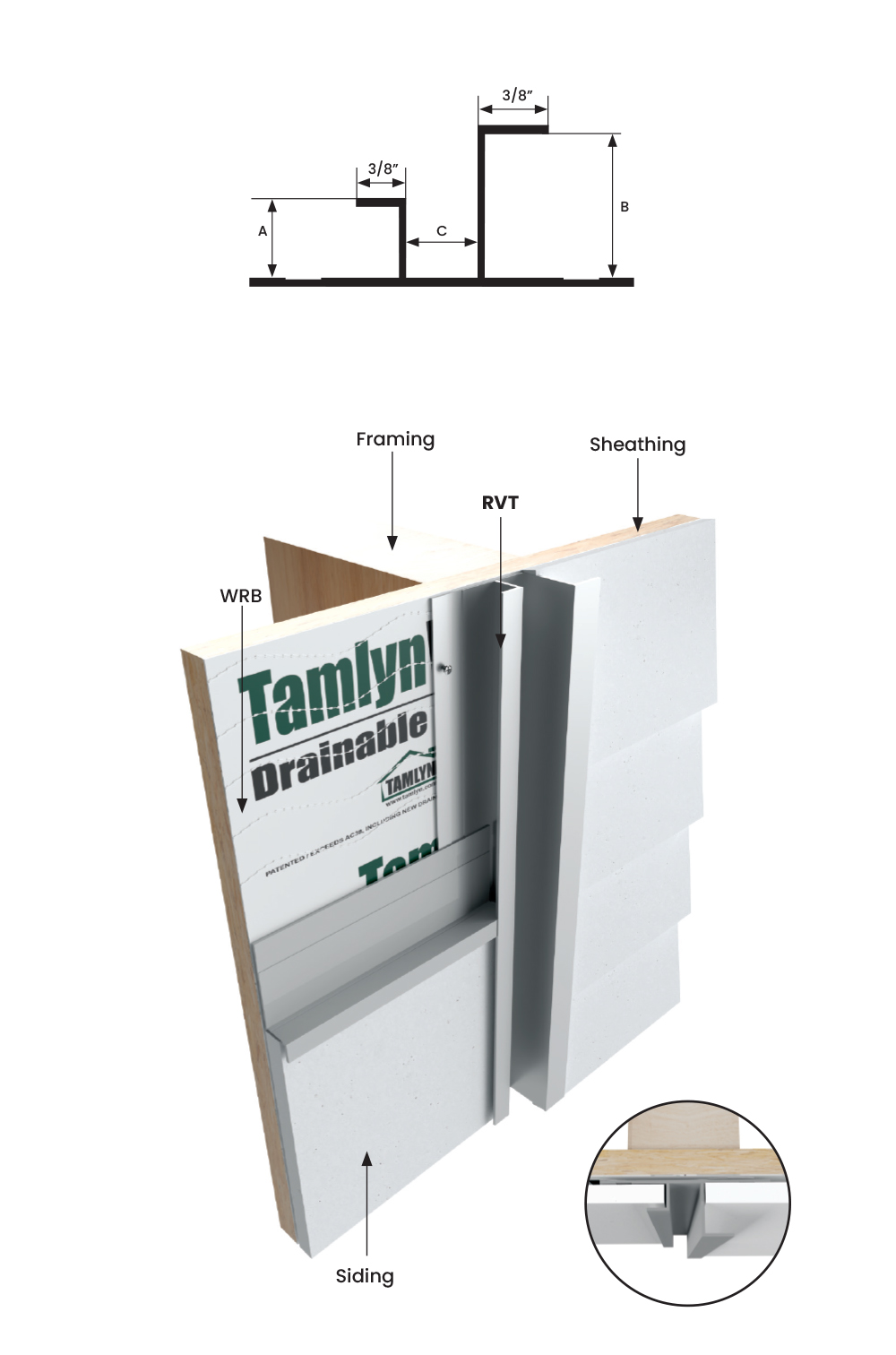

All measurements are nominal
ITEM ID | A | B | C |
---|---|---|---|
RVT51634 | 3/8” | 3/4” | 1/2” |
All parts are 10’ Length unless otherwise indicated
