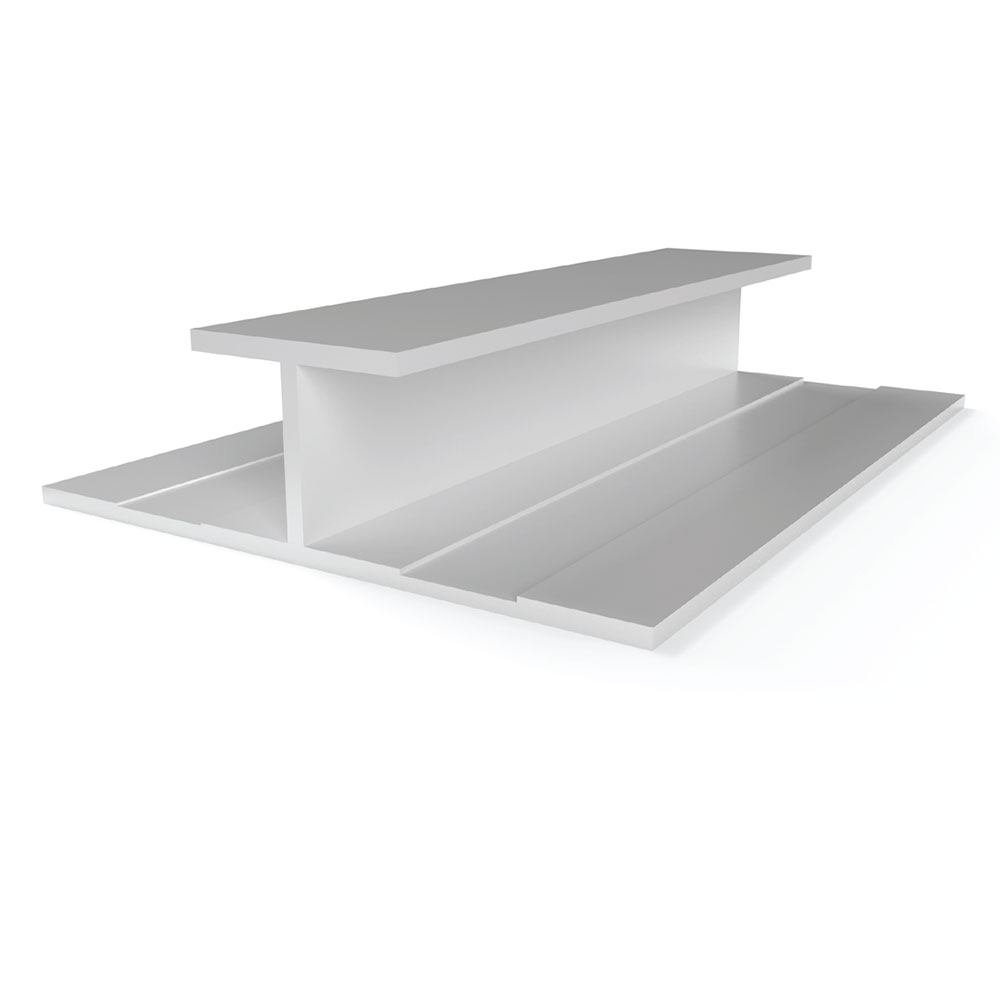

Vertical Siding H-Mold
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| SHM516 | 1/2โ | 3/8โ |
| SHM716 | 3/4โ | 7/16โ |
| SHM58 | 3/4โ | 5/8โ |
| SHM34 | 3/4โ | 3/4โ |
| SHM1 | 1โ | 1โ |
| SHM114 | 1-1/4โ | 1-1/4โ |
All parts are 10โ Length unless otherwise indicated
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Use of the XtremeTrimยฎย Do not install XtremeTrimยฎ Vertical Siding H Mold on horizontal applications where the exterior flange can catch/hold water.
Vertical Siding H-Mold

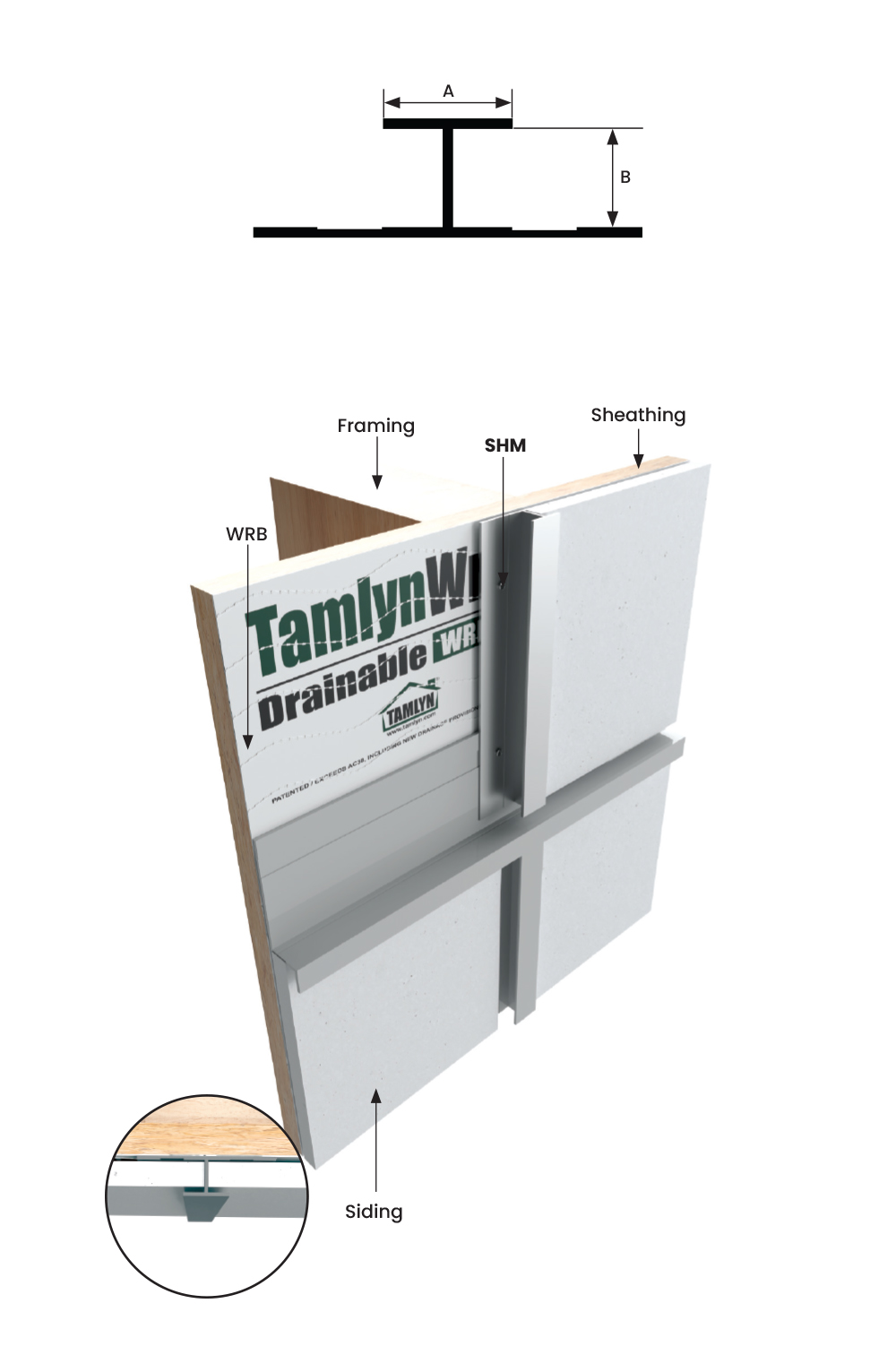

Designed to cover vertical joints in siding. Provides a smooth seam.
MATERIALS:ย 6063-T5 .050″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Use of the XtremeTrimยฎย Do not install XtremeTrimยฎ Vertical Siding H Mold on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| SHM516 | 1/2โ | 3/8โ |
| SHM716 | 3/4โ | 7/16โ |
| SHM58 | 3/4โ | 5/8โ |
| SHM34 | 3/4โ | 3/4โ |
| SHM1 | 1โ | 1โ |
| SHM114 | 1-1/4โ | 1-1/4โ |
All parts are 10โ Length unless otherwise indicated
