Vertical T-Mold
All measurements are nominal
| ITEM ID | A | Length |
|---|---|---|
| TM158 | 5/16โ | 8' |
| TM1510 | 5/16โ | 10' |
All parts are 10โ Length unless otherwise indicated
MATERIALS:ย 6063-T5 .040″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Use of the XtremeTrimยฎย Panelseamยฎย Do not install XtremeTrimยฎ Vertical T Mold on horizontal applications where the exterior flange can catch/hold water.

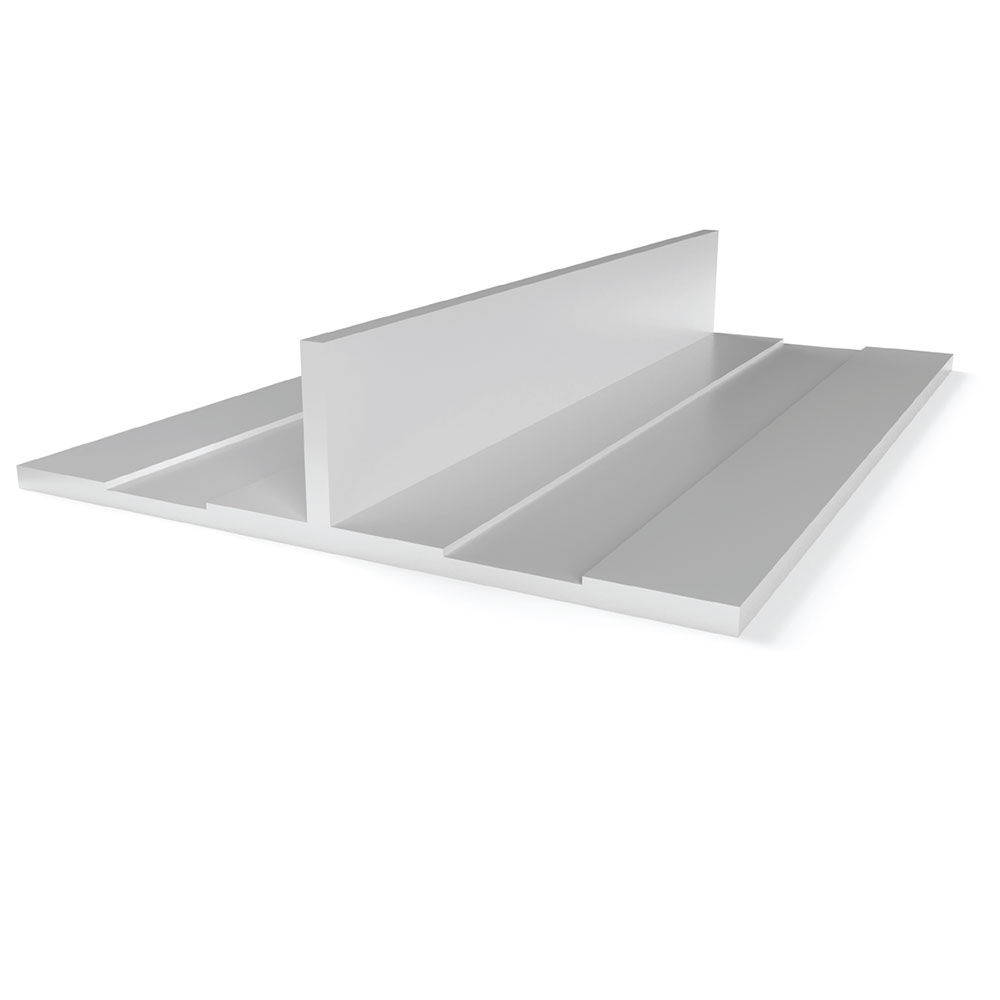

Vertical T-Mold

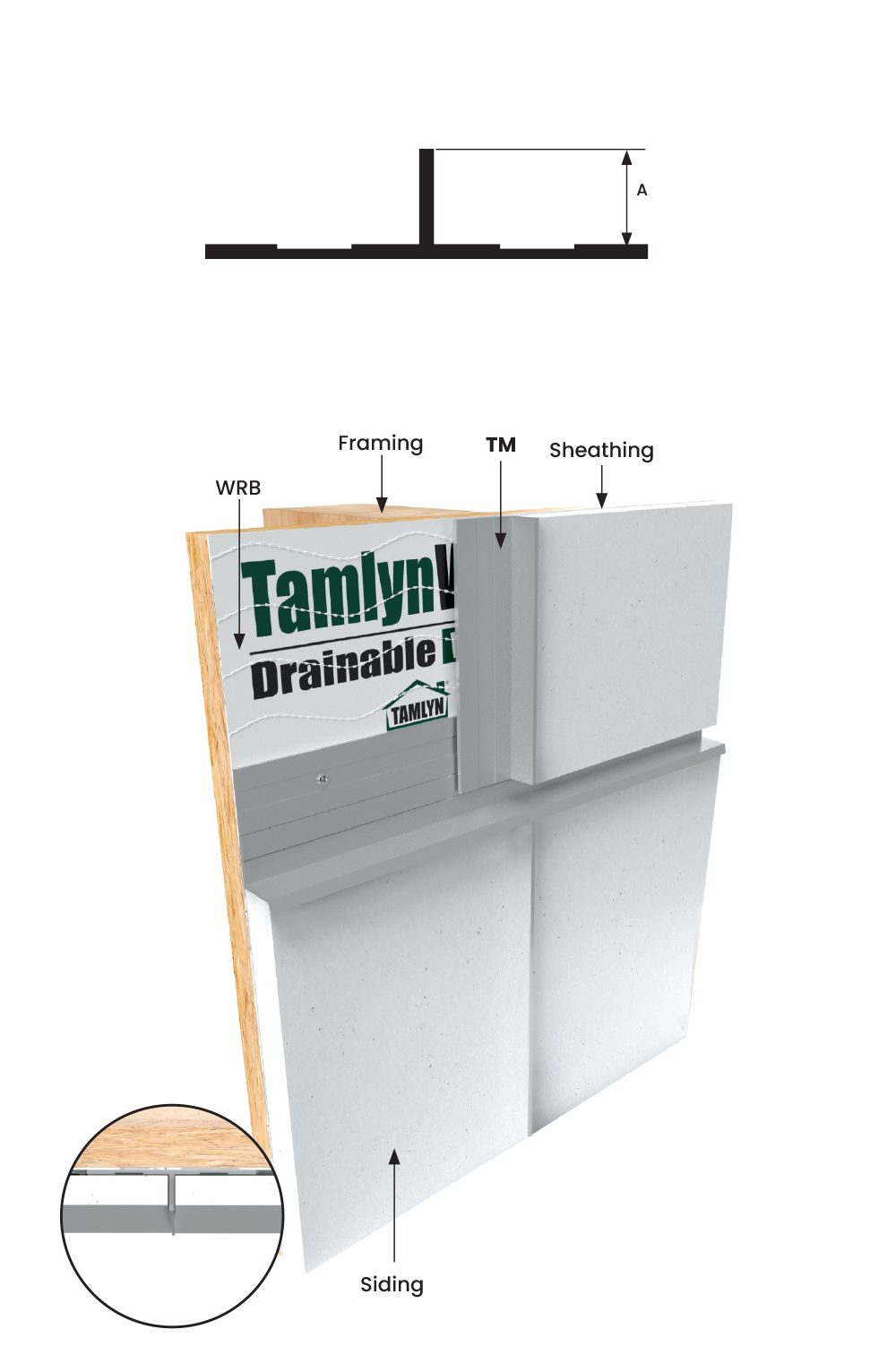

XtremeTrimยฎ Vertical Panelseamยฎ T-Mold serves as a minimal expansion joint between panels. Works with all 5/16″ panel profiles/ finishes. Not recommended for use with thicker panels.
MATERIALS:ย 6063-T5 .040″ ยฑ .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE:ย Use of the XtremeTrimยฎย Panelseamยฎย Do not install XtremeTrimยฎ Vertical T Mold on horizontal applications where the exterior flange can catch/hold water.
All measurements are nominal
| ITEM ID | A | Length |
|---|---|---|
| TM158 | 5/16โ | 8' |
| TM1510 | 5/16โ | 10' |
All parts are 10โ Length unless otherwise indicated
