Wall Bracing
WBT Series: T wall brace extra-rigid lengths won’t bend as easily as flat brace, making installation easier. No X-pattern installation needed.
MATERIALS:
WB 16ga. galvanized steel
WBT 22ga. galvanized steel
CODES: FL Approval #8283, ICC ESR-1347
Wall Bracing
WB Series: We recommend metal bracing only be used to serve as temporary bracing to prevent racking before structural sheathing is applied. Metal bracing should never be used as a substitute for shear wall sheathing, as it offers only about one-tenth the resistance to racking as 3/8” plywood.

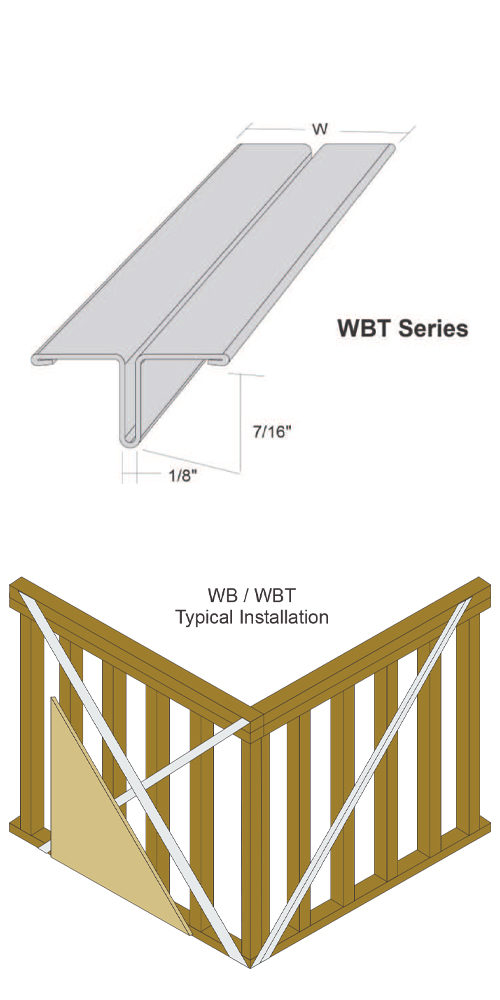

WBT Series: T wall brace extra-rigid lengths won’t bend as easily as flat brace, making installation easier. No X-pattern installation needed.
MATERIALS:
WB 16ga. galvanized steel
WBT 22ga. galvanized steel
CODES: FL Approval #8283, ICC ESR-1347
