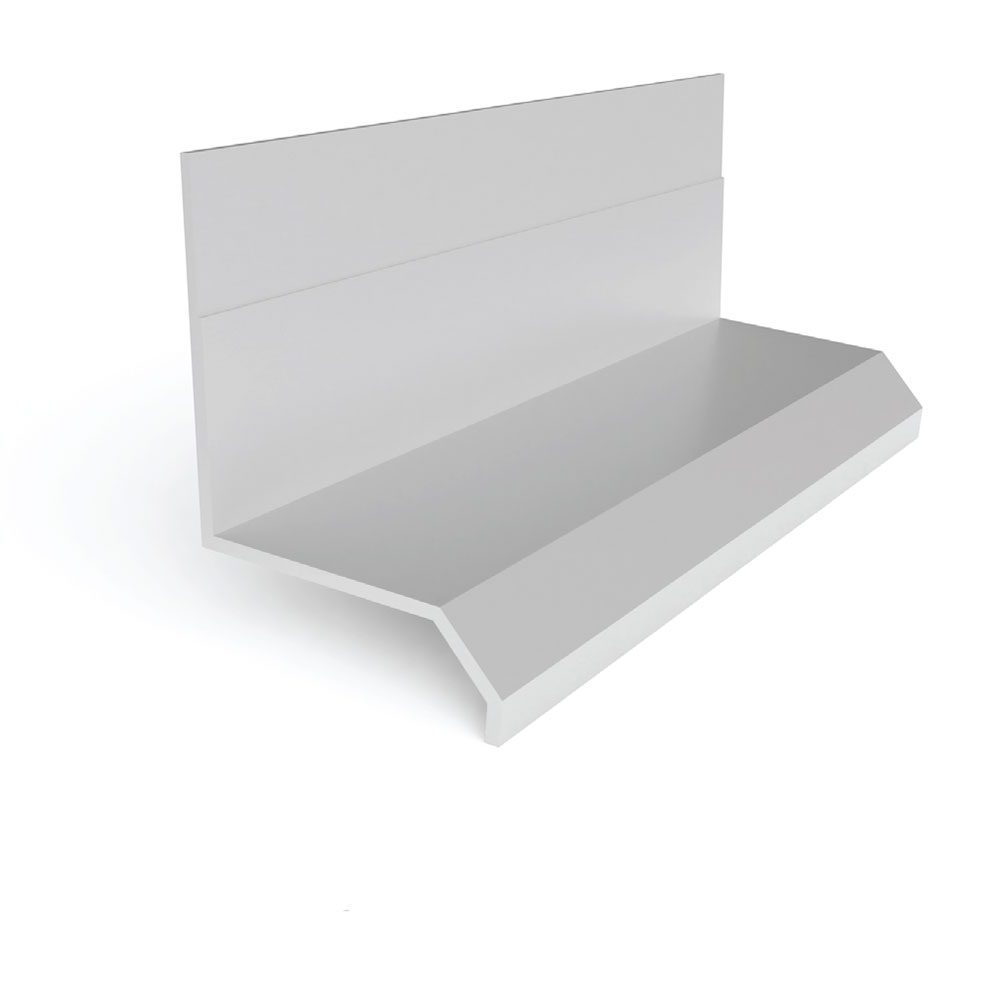

Window/Head Flashing
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XWF78 | 1-1/4” | 7/8” |
| XWF114 | 1-3/4” | 1-1/4” |
| XWF112 | 1-1/4” | 1-1/2” |
| XWF158 | 1-1/4” | 1-5/8” |
| XWF2 | 2” | 2” |
All parts are 10’ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE: Do not install XtremeTrim® Window Flashing on horizontal applications where the exterior flange can catch water.
Window/Head Flashing
Provides an easy to install and long-lasting method of minimizing water penetration. Used over window trim, band boards, panel intersections, and material transitions.
MATERIALS: 6063-T5 .050″ ± .005 extruded aluminum alloy with proprietary coating that protects against harsh weather conditions and allows for paint adhesion.
NOTE: Do not install XtremeTrim® Window Flashing on horizontal applications where the exterior flange can catch water.
All measurements are nominal
| ITEM ID | A | B |
|---|---|---|
| XWF78 | 1-1/4” | 7/8” |
| XWF114 | 1-3/4” | 1-1/4” |
| XWF112 | 1-1/4” | 1-1/2” |
| XWF158 | 1-1/4” | 1-5/8” |
| XWF2 | 2” | 2” |
All parts are 10’ Length unless otherwise indicated
*In Stock in BLACK ANODIZED
