XCAC

XtremeCoat

PROPERTIESVALUE
COLORWhite/Grey (other colors available on request)
MIXED DENSITY, (G/L)1.1±0.05
SOLID CONTENT, (%)65±2
POT LIFE, (HRS)6
≥1025
INITIAL CURE TIME, (MINS)60
FULL CURE, (HRS)24
TENSILE STRENGTH, (N, MM²) ≥2.5
ELONGATION, (%)≥250
TEAR STRENGTH, (N, MM)≥10
SOLAR REFLECTION, (%) (WHITE) ≥75
SHORE A HARDNESS45
WATER VAPOR TRANSMISSION, (PERMS)6
ADHESION STRENGTH, (N, MM²)≥2.5
CRACKING BRIDGING ABILITY, (MM)≥2
APPLICATION TEMPERATURE, (°C)5 to 45
SERVICE TEMPERATURE, (°C)-5 to 70

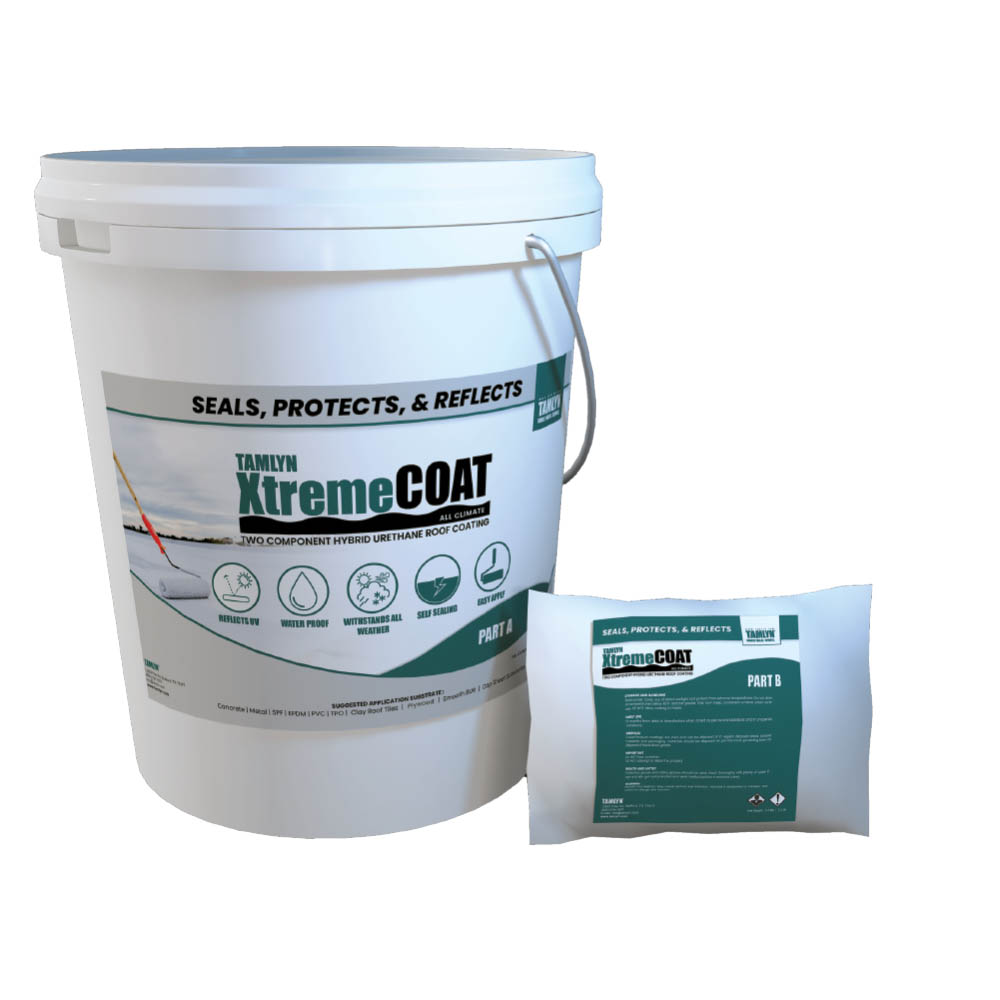

Tamlyn® XtremeCOAT is a high strength, Two-component fast curing, hybrid Urethane roof coating. XtremeCOAT is a low viscosity highly penetrative coating which upon curing forms a flexible membrane, making it highly suitable for all types of waterproofing applications on various substrates. XtremeCOAT has excellent adhesion on all suggested substrates an can also be applied on wet and damp surfaces.

STORAGE LIFE: 12 months when stored in unopened conditions.

COLORS AVAILABLE: White

USES: Product can be applied on Concrete, Metal, SPF, EPDM, PVC, TPO, Clay Roof tiles, Plywood, Smooth BUR and Cap Sheet Substrates

APPLICATION: Product shall be applied in minimum of 2 coats. Apply The first coat of Product on all areas with a brush / roller or spray at a coverage rate of 1.5 gallons/square. Dry Film Thickness (DFT) should be minimum of 22 mils.

Apply the second coat in a perpendicular direction to the previous coat after the previous coat dries off. Allow at least four hours between coats and 24–48 hours for full cure, dependent upon weather conditions. Relative humidity will directly affect drying curing time. Avoid over application. Application rates should be adjusted to meet each particular roofs specified requirements. Coverage rates are theoretical and do not take into account material loss due to surface texture.
XCAC

XtremeCoat

Tamlyn® XtremeCOAT is a high strength, Two-component fast curing, hybrid Urethane roof coating. XtremeCOAT is a low viscosity highly penetrative coating which upon curing forms a flexible membrane, making it highly suitable for all types of waterproofing applications on various substrates. XtremeCOAT has excellent adhesion on all suggested substrates an can also be applied on wet and damp surfaces.

STORAGE LIFE: 12 months when stored in unopened conditions.

COLORS AVAILABLE: White

USES: Product can be applied on Concrete, Metal, SPF, EPDM, PVC, TPO, Clay Roof tiles, Plywood, Smooth BUR and Cap Sheet Substrates

APPLICATION: Product shall be applied in minimum of 2 coats. Apply The first coat of Product on all areas with a brush / roller or spray at a coverage rate of 1.5 gallons/square. Dry Film Thickness (DFT) should be minimum of 22 mils.

Apply the second coat in a perpendicular direction to the previous coat after the previous coat dries off. Allow at least four hours between coats and 24–48 hours for full cure,
dependent upon weather conditions. Relative humidity will directly affect drying curing time. Avoid over application. Application rates should be adjusted to meet each particular roofs specified requirements. Coverage rates are theoretical and do not take into account material loss due to surface texture.

PROPERTIESVALUE
COLORWhite/Grey (other colors available on request)
MIXED DENSITY, (G/L)1.1±0.05
SOLID CONTENT, (%)65±2
POT LIFE, (HRS)6
≥1025
INITIAL CURE TIME, (MINS)60
FULL CURE, (HRS)24
TENSILE STRENGTH, (N, MM²) ≥2.5
ELONGATION, (%)≥250
TEAR STRENGTH, (N, MM)≥10
SOLAR REFLECTION, (%) (WHITE) ≥75
SHORE A HARDNESS45
WATER VAPOR TRANSMISSION, (PERMS)6
ADHESION STRENGTH, (N, MM²)≥2.5
CRACKING BRIDGING ABILITY, (MM)≥2
APPLICATION TEMPERATURE, (°C)5 to 45
SERVICE TEMPERATURE, (°C)-5 to 70
