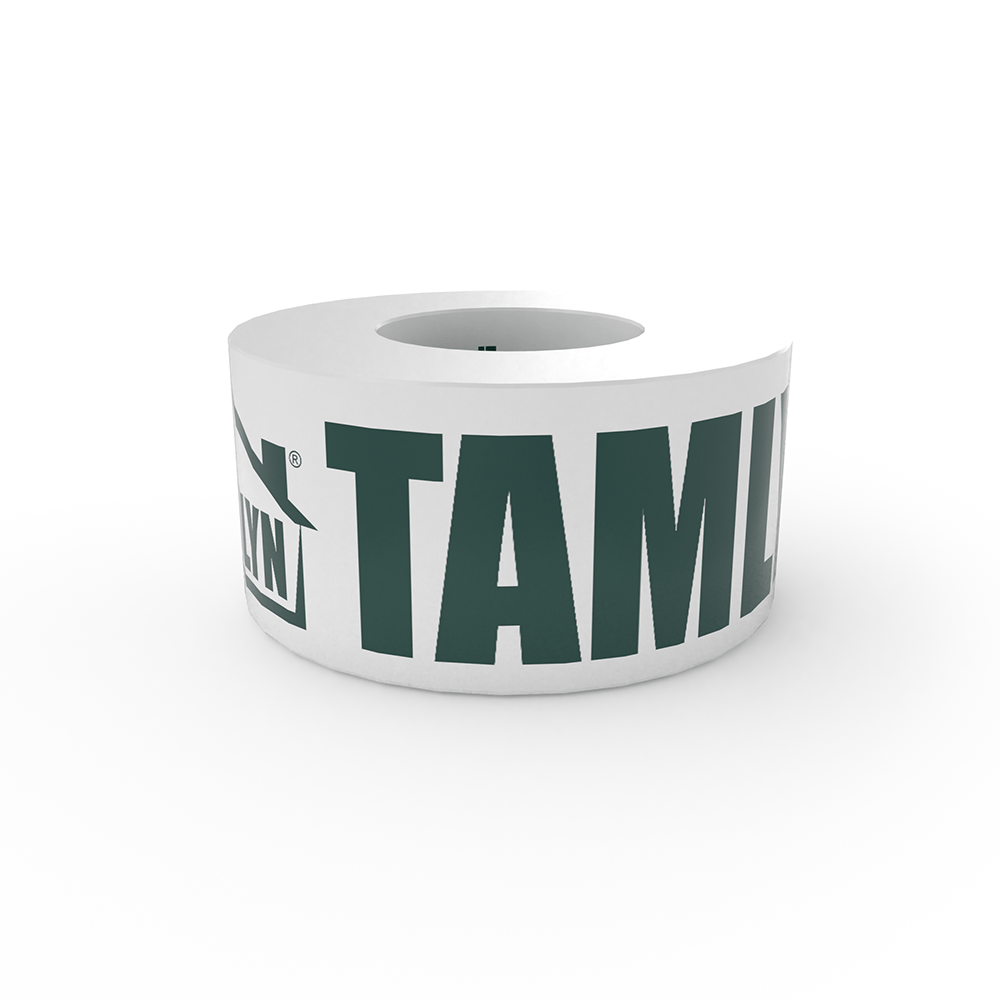

XtremeFlashing Synthetic Butyl Tape

ITEM ID | WIDTH | LENGTH | THICKNESS |
---|---|---|---|
WSB20-4 | 4" | 75’ | 20 mil |
WSB20-6 | 6" | 75’ | 20 mil |
WSB20-9 | 9" | 75’ | 20 mil |
WSB20-12 | 12" | 75’ | 20 mil |
Provides a water tight seal that integrates with other wall components for water management around windows, doors and other wall penetrations such as pipes, electrical conduits, through wall flashing and other flashing details. Must be installed SHINGLE FASHION for proper moisture management.
• Self-seals around fasteners including nails, staples and screws.
• Protects against water, air, insect and noise infiltration.
• Integrates with other wall components.
• Butyl adhesive won’t crack, dry, run or stain. Uniform thickness.
• Compatible with most common building materials.
• Available in 4”, 6”, 9” and 12” wide rolls.
15 Years Limited Warranty, contact Tamlyn for warranty details and limitations or visit www.tamlyn.com
XtremeFlashing Synthetic Butyl Tape
XtremeFlashing™ (Butyl) is a self-adhering, self-sealing waterproofing tape designed for use around windows, doors, building seams and in general construction. It is composed of a polymer film that is coated with an aggressive Broad Temperature Spectrum (BTS™) butyl adhesive. This advanced butyl adhesive is suitable for extreme temperature applications. A release liner protects the adhesive and is removed as the tape is installed. The BTS™ adhesive self-seals around punctures caused by nails and staples. This advanced system bonds to all common building materials and seals around fasteners.
Provides a water tight seal that integrates with other wall components for water management around windows, doors and other wall penetrations such as pipes, electrical conduits, through wall flashing and other flashing details. Must be installed SHINGLE FASHION for proper moisture management.
• Self-seals around fasteners including nails, staples and screws.
• Protects against water, air, insect and noise infiltration.
• Integrates with other wall components.
• Butyl adhesive won’t crack, dry, run or stain. Uniform thickness.
• Compatible with most common building materials.
• Available in 4”, 6”, 9” and 12” wide rolls.
15 Years Limited Warranty, contact Tamlyn for warranty details and limitations or visit www.tamlyn.com

ITEM ID | WIDTH | LENGTH | THICKNESS |
---|---|---|---|
WSB20-4 | 4" | 75’ | 20 mil |
WSB20-6 | 6" | 75’ | 20 mil |
WSB20-9 | 9" | 75’ | 20 mil |
WSB20-12 | 12" | 75’ | 20 mil |
