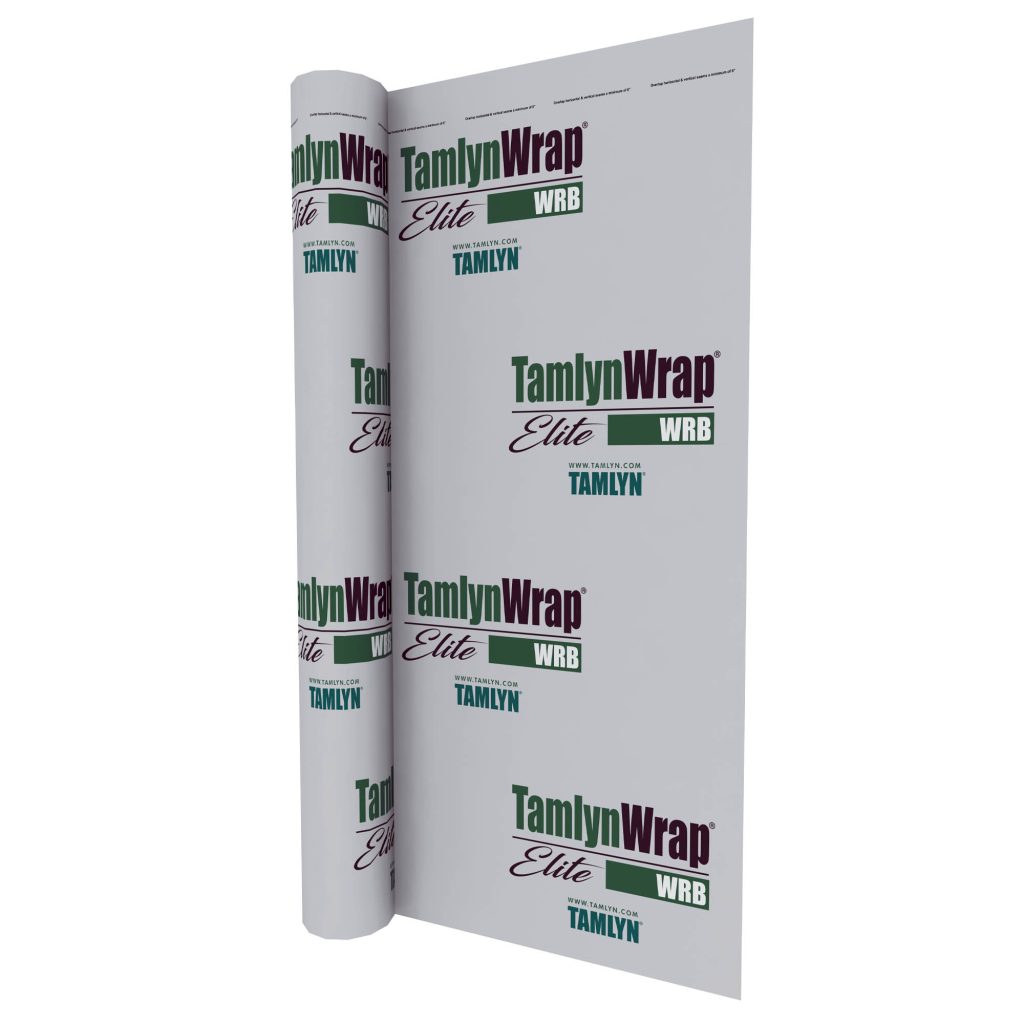

TamlynWrap® Elite WRB
| ITEM ID | TWE9X125 |
|---|---|
| WIDTH | 9 ft |
| LENGTH | 125 ft |
| COVERAGE | 1125 sf |
| ROLL WEIGHT | 22 lbs |
| VAPOR PERMEANCE | 20 perms |
| THICKNESS | 0.3 mm |
| UV RATING | Maximum 120 days |
| FIRE RATING | Class A |
The ideal vapor permeability facilitates drying of unwanted moisture, may be used in all climate zones and is suitable for use behind all cladding systems. TamlynWrap® Elite meets or exceeds all residential code requirements at an affordable price.
VAPOR PERMEABLE (perm rating of 20)
The vapor permeability facilitates drying of wall components and mitigates potential moisture accumulation as well as the damaging effects of mold and rot.
MEETS ALL EXISTING CODE REQUIREMENTS
Meets and exceeds the ICC acceptance criteria requirements for water resistive barriers (AC38).
BEST PRACTICE
TamlynWrap® Elite WRB must be installed SHINGLE FASHION and integrated with other wall components to promote positive mechanical drainage. All horizontal and vertical overlaps shall be 6” with 12” vertical overlap at any corners. Cap fasteners must be used for attachment per installation guidelines.
Control No. 5026846 Conforms to UL STD CCRR-0520 Certified to CSA STD ICC-ES AC38
MSDS Download

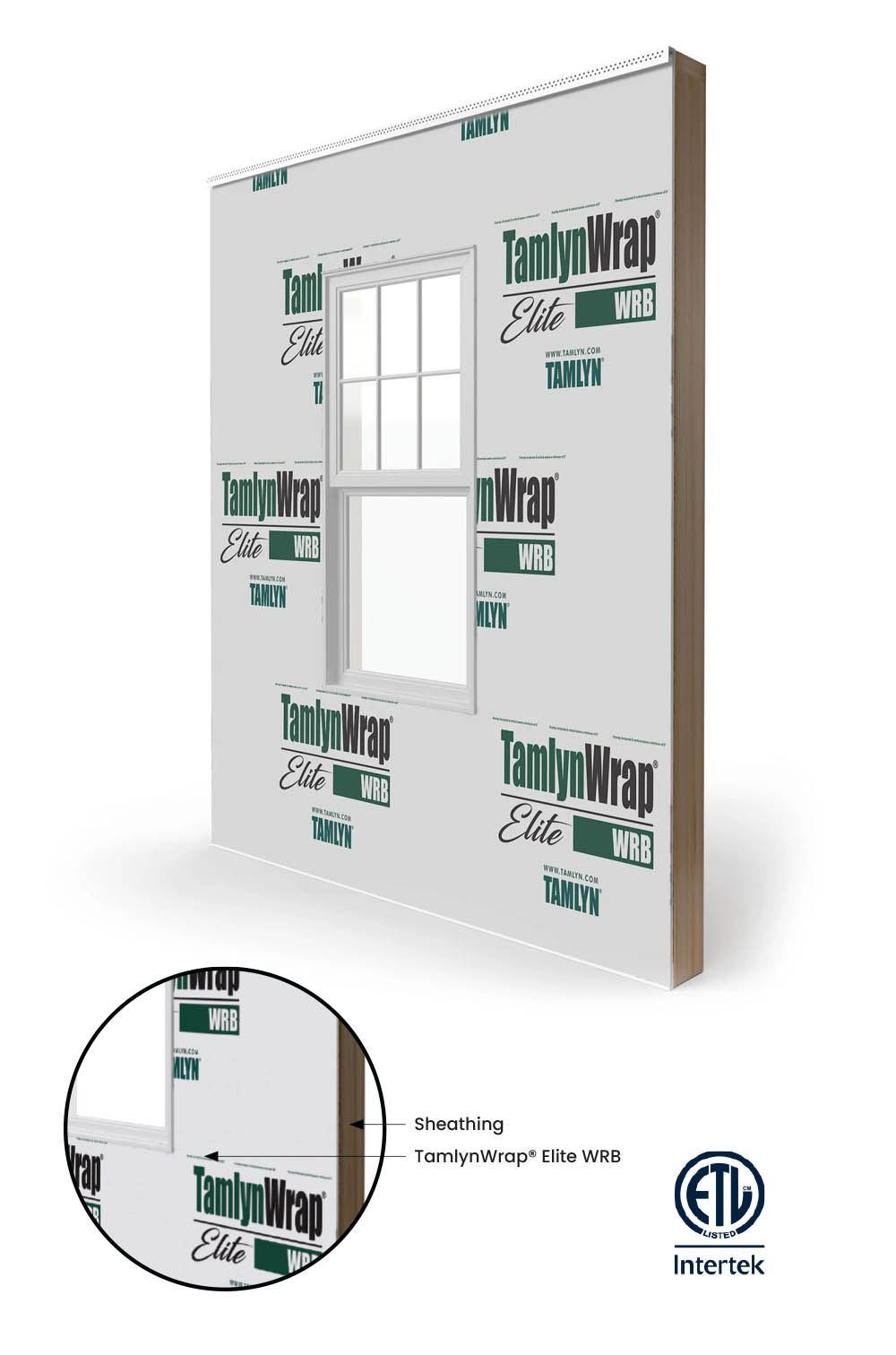

Modified “I” Method Installation
TamlynWrap® Elite WRB
TamlynWrap® Elite WRB is a residential grade moisture management product. This innovative product combines a non-woven backing with a durable coating to offer a balance of strength, moisture resistance, air infiltration protection and vapor permeability. This non-perforated Water Resistive Barrier (WRB) is an economical option providing excellent moisture protection as well as wind and tear resistance.
The ideal vapor permeability facilitates drying of unwanted moisture, may be used in all climate zones and is suitable for use behind all cladding systems. TamlynWrap® Elite meets or exceeds all residential code requirements at an affordable price.
VAPOR PERMEABLE (perm rating of 20)
The vapor permeability facilitates drying of wall components and mitigates potential moisture accumulation as well as the damaging effects of mold and rot.
MEETS ALL EXISTING CODE REQUIREMENTS
Meets and exceeds the ICC acceptance criteria requirements for water resistive barriers (AC38).
BEST PRACTICE
TamlynWrap® Elite WRB must be installed SHINGLE FASHION and integrated with other wall components to promote positive mechanical drainage. All horizontal and vertical overlaps shall be 6” with 12” vertical overlap at any corners. Cap fasteners must be used for attachment per installation guidelines.
Control No. 5026846 Conforms to UL STD CCRR-0520 Certified to CSA STD ICC-ES AC38
| ITEM ID | TWE9X125 |
|---|---|
| WIDTH | 9 ft |
| LENGTH | 125 ft |
| COVERAGE | 1125 sf |
| ROLL WEIGHT | 22 lbs |
| VAPOR PERMEANCE | 20 perms |
| THICKNESS | 0.3 mm |
| UV RATING | Maximum 120 days |
| FIRE RATING | Class A |
