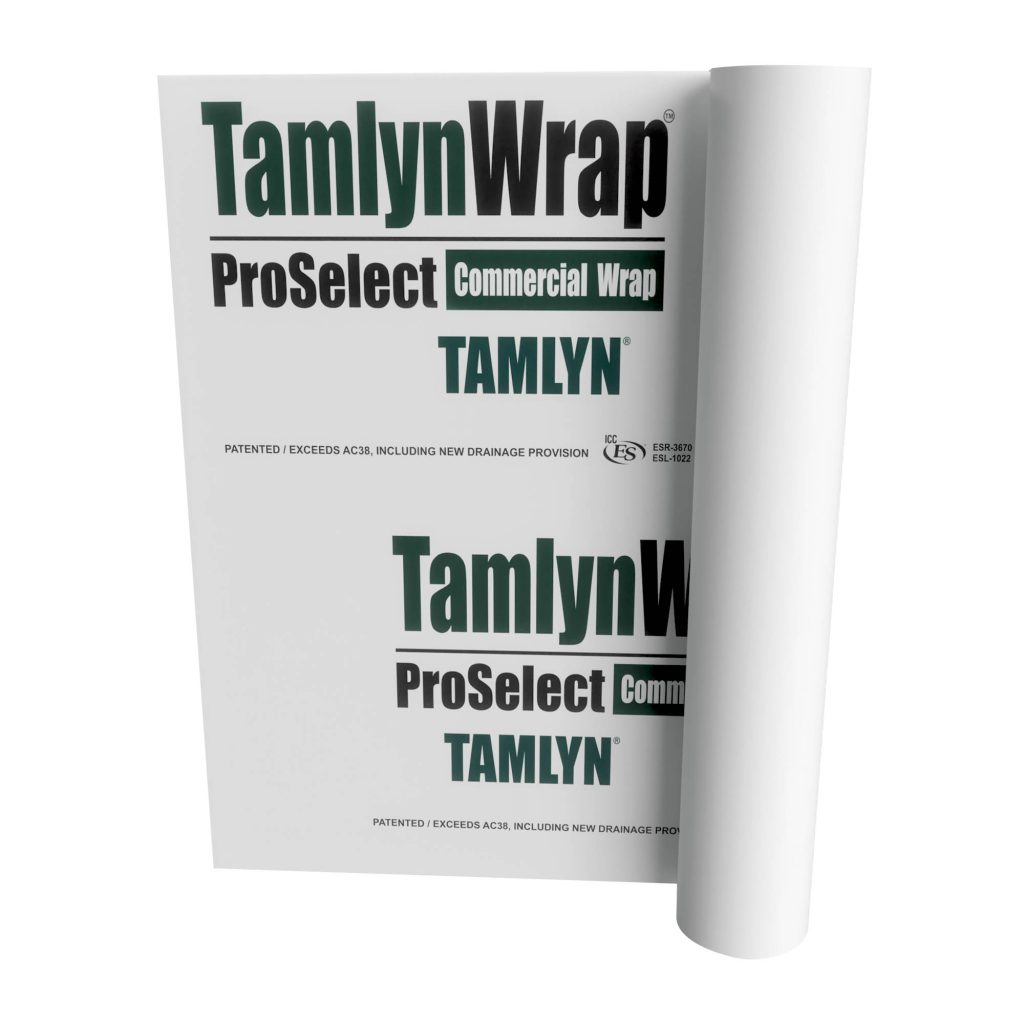

ProSelect™ Commercial Wrap
| ITEM ID | TWC5X200 |
|---|---|
| WIDTH | 5 ft |
| LENGTH | 200 ft |
| COVERAGE | 1000 sf |
| ROLL WEIGHT | 25 lbs |
| VAPOR PERMEANCE | 19 perms |
| THICKNESS | 0.3 mm |
| UV RATING | Maximum 270 days |
| WARRANTY | 15 or 25-year limited |
| FIRE RATING | Class A |
In a convenient and easily handled 5 foot by 200 foot roll weighing only 25 pounds, ProSelect™ is easy to use at any level of the wall. This roll size facilitates the installation process at elevated heights and improves safety associated with wind events. ProSelect™ is unique in its development for focusing on improving building performance as well as the installation quality and safety.
VAPOR PERMEABLE (perm rating of 19) The vapor permeability facilitates drying of wall components and mitigates potential moisture accumulation as well as the damaging effects of mold and rot.
MEET ALL EXISTING CODE REQUIREMENTS Meets or exceeds the ICC acceptance criteria requirements for water resistive barriers (AC38).

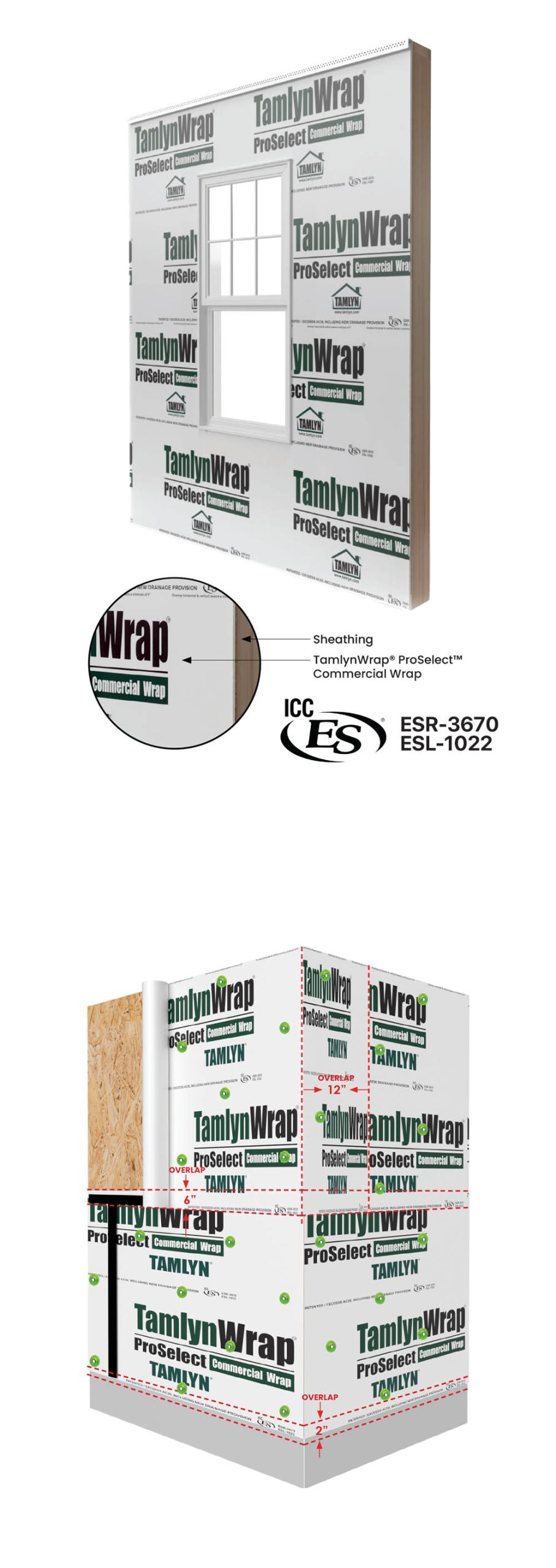

BEST PRACTICE INSTALLATION: ProSelect™ must be installed SHINGLE FASHION and integrated with other wall components to promote positive mechanical drainage. All horizontal and vertical overlaps shall be 6” with 12” vertical overlap at any corners. Cap fasteners must be used for attachment per installation guidelines.
ProSelect Warranty Download
Modified “I” Method Installation
Cut Back Method Installation
ProSelect™ Commercial Wrap
When the project requires a strong and durable wrap, ProSelect™ is the choice for the professional builder. ProSelect™ is a high performance water and air resistive barrier product designed for the harsh conditions of a jobsite. ProSelect™ is made from multiple non-woven and barrier layers that provide superior durability, moisture and air infiltration protection.
In a convenient and easily handled 5 foot by 200 foot roll weighing only 25 pounds, ProSelect™ is easy to use at any level of the wall. This roll size facilitates the installation process at elevated heights and improves safety associated with wind events. ProSelect™ is unique in its development for focusing on improving building performance as well as the installation quality and safety.
VAPOR PERMEABLE (perm rating of 19) The vapor permeability facilitates drying of wall components and mitigates potential moisture accumulation as well as the damaging effects of mold and rot.
MEET ALL EXISTING CODE REQUIREMENTS Meets or exceeds the ICC acceptance criteria requirements for water resistive barriers (AC38).
BEST PRACTICE INSTALLATION: ProSelect™ must be installed SHINGLE FASHION and integrated with other wall components to promote positive mechanical drainage. All horizontal and vertical overlaps shall be 6” with 12” vertical overlap at any corners. Cap fasteners must be used for attachment per installation guidelines.
| ITEM ID | TWC5X200 |
|---|---|
| WIDTH | 5 ft |
| LENGTH | 200 ft |
| COVERAGE | 1000 sf |
| ROLL WEIGHT | 25 lbs |
| VAPOR PERMEANCE | 19 perms |
| THICKNESS | 0.3 mm |
| UV RATING | Maximum 270 days |
| WARRANTY | 15 or 25-year limited |
| FIRE RATING | Class A |
