TWD

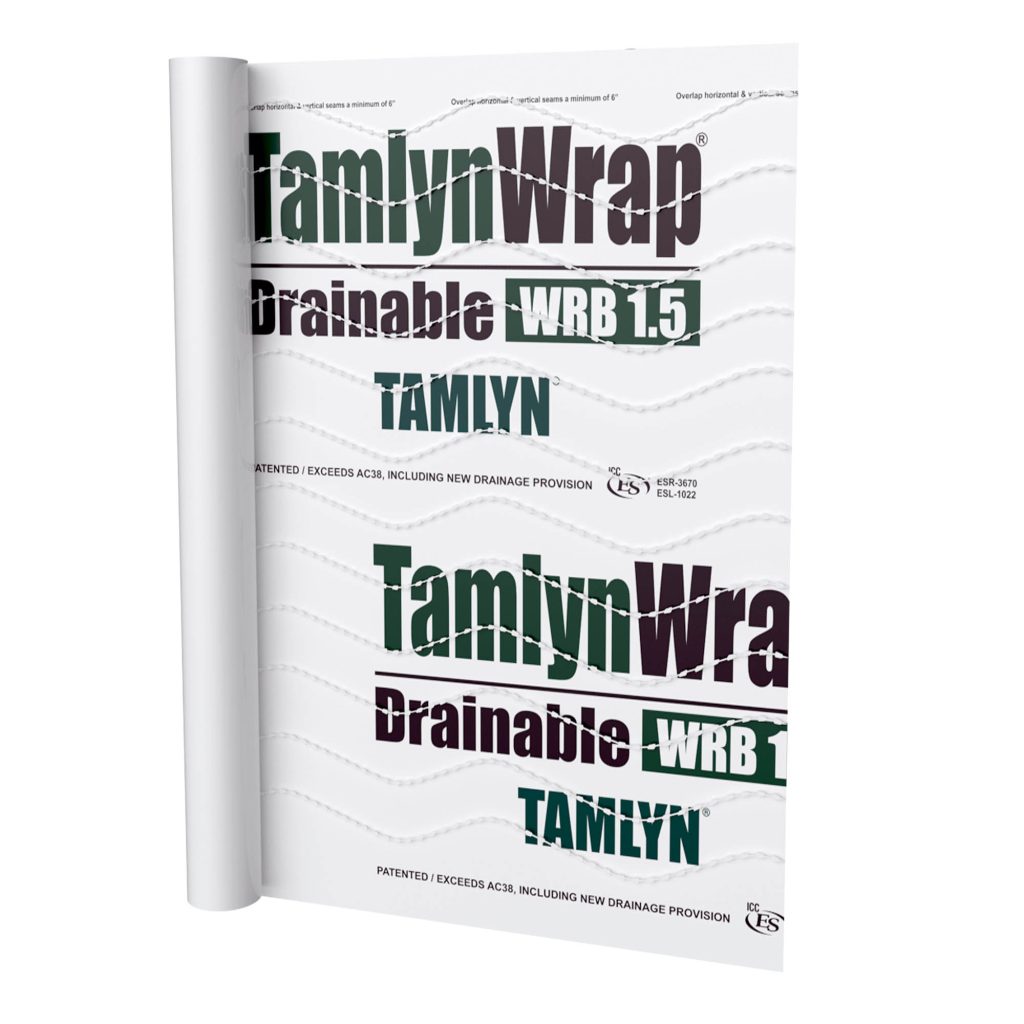

TamlynWrap® Drainable Wrap

ITEM IDTWD5X100
WIDTH5 ft
LENGTH100 ft
COVERAGE500 sf
ROLL WEIGHT17 lbs
VAPOR PERMEANCE19 perms
THICKNESS1.8 mm
DRAINAGE GAP1.5 mm
UV RATINGMaximum 180 days
WARRANTY15 or 25-year limited
FIRE RATINGClass A
TamlynWrap® Drainable WRB is a unique moisture management product from Tamlyn. This innovative product combines a high performance Water Resistive Barrier (WRB) with a unique drainage pattern. Its unique design can remove 100 times more bulk water from a wall versus standard wraps.

DRAINS FASTER THAN OTHER DRAINABLE WRAPS

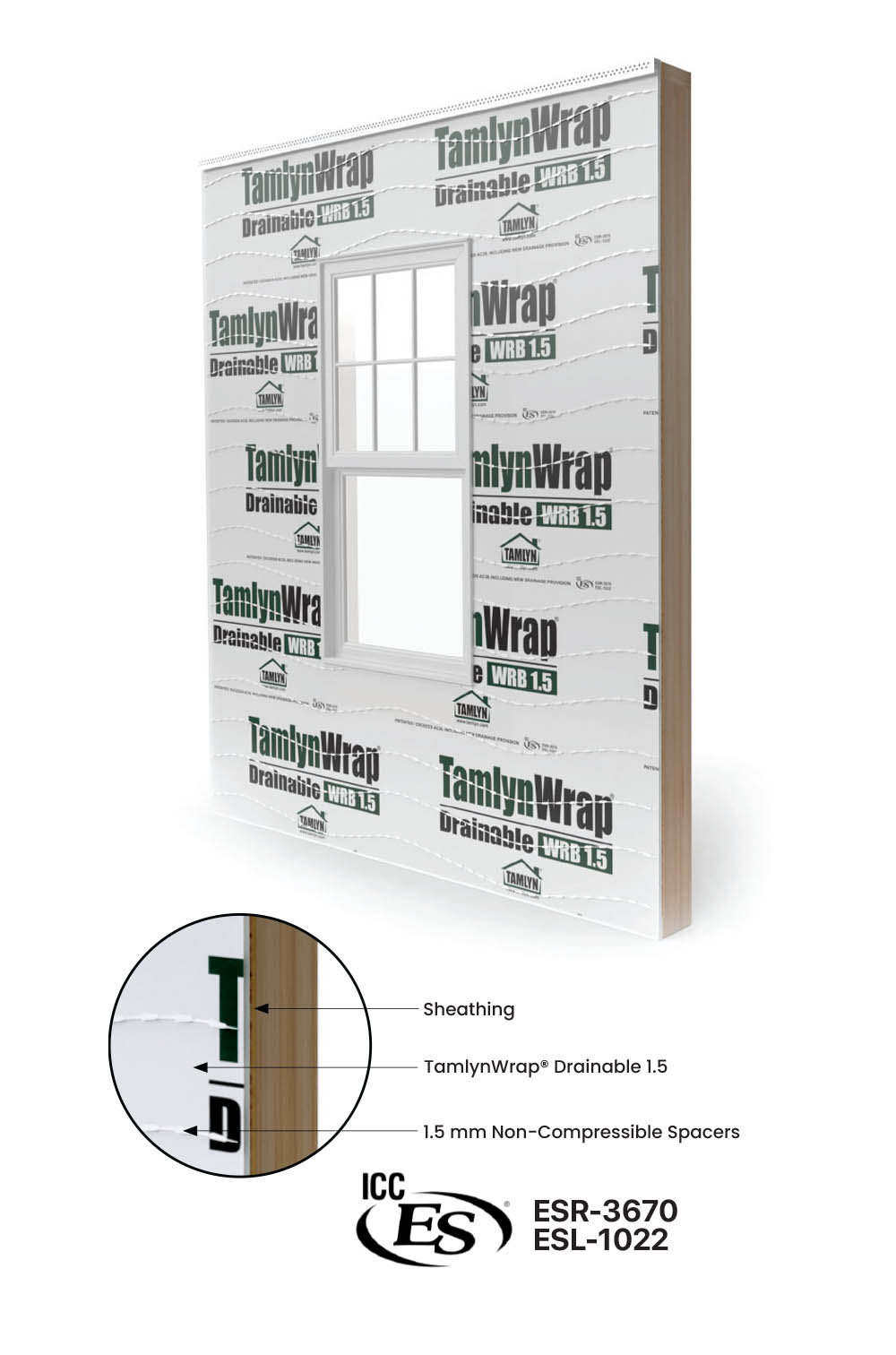

This is achieved through the gap created by 1.5 mm non-compressible spacers bonded to a high performance Water Resistance Barrier (WRB). This patented design provides a physical drainage space between the sheathing and cladding material.

CAN BE INSTALLED IN ANY DIRECTION
This patented technology is omni-directional which offers installation flexibility vs other options on the market.

VAPOR PERMEABLE (perm rating of 19)
The vapor permeability facilitates drying of wall components and mitigates potential moisture accumulation as well as the damaging effects of mold and rot.

MEETS ALL EXISTING CODE REQUIREMENTS FOR DRAINABILITY
Meets or exceeds the ICC acceptance criteria requirements for water resistive barriers (AC38) and drainage efficiency.

BEST PRACTICE
TamlynWrap® Drainable Wrap must be installed SHINGLE FASHION and integrated with other wall components to promote positive mechanical drainage. All horizontal and vertical overlaps shall be 6” with 12” vertical overlap at any corners. All vertical seams shall be taped and cap fasteners used for attachment per installation guidelines.

Drainable Wrap Warranty Download

Modified “I” Method Installation

Cut Back Method Installation
TWD

TamlynWrap® Drainable Wrap

TamlynWrap® Drainable WRB is a unique moisture management product from Tamlyn. This innovative product combines a high performance Water Resistive Barrier (WRB) with a unique drainage pattern. Its unique design can remove 100 times more bulk water from a wall versus standard wraps.

DRAINS FASTER THAN OTHER DRAINABLE WRAPS
This is achieved through the gap created by 1.5 mm non-compressible spacers bonded to a high performance Water Resistance Barrier (WRB). This patented design provides a physical drainage space between the sheathing and cladding material.

CAN BE INSTALLED IN ANY DIRECTION
This patented technology is omni-directional which offers installation flexibility vs other options on the market.

VAPOR PERMEABLE (perm rating of 19)
The vapor permeability facilitates drying of wall components and mitigates potential moisture accumulation as well as the damaging effects of mold and rot.

MEETS ALL EXISTING CODE REQUIREMENTS FOR DRAINABILITY
Meets or exceeds the ICC acceptance criteria requirements for water resistive barriers (AC38) and drainage efficiency.

BEST PRACTICE
TamlynWrap® Drainable Wrap must be installed SHINGLE FASHION and integrated with other wall components to promote positive mechanical drainage. All horizontal and vertical overlaps shall be 6” with 12” vertical overlap at any corners. All vertical seams shall be taped and cap fasteners used for attachment per installation guidelines.

Drainable Wrap Warranty Download

Modified “I” Method Installation

Cut Back Method Installation

ITEM IDTWD5X100
WIDTH5 ft
LENGTH100 ft
COVERAGE500 sf
ROLL WEIGHT17 lbs
VAPOR PERMEANCE19 perms
THICKNESS1.8 mm
DRAINAGE GAP1.5 mm
UV RATINGMaximum 180 days
WARRANTY15 or 25-year limited
FIRE RATINGClass A
